Stainless Steel Glue dispensing Syringe – Size from 10cc to 500cc
Stainless Steel Glue Dispensing Syringe, Adhesive Dispenser Syring China Supplier
Feature of Pneumatic glue dispenser syringe
- Made of pure stainless steel, in order to make sure it is 100% safe for high pressure, we strength the thickness of wall to as many as 3mm. Suitable for withstanding high temperature and high pressure.
- There are 2 kinds of mouth of barrel, standard lure lock tip of 10cc, 30cc, 55cc, 100cc and 200cc. Both of 300cc and 500cc are big mouth, you need to install a tip adapter If you want to connect standard dispensing needles. If you want to buy the adaptor, please feel free to contact with us.
- Stainless steel dispensing syringe, could be used for the viscosity glues or pastes which are already packed well, or directly put the glue or fluid into the barrel to be used. One of The biggest advantages is resisting corrosion, besides, it has long working life, it is easy to clean. It is can be handled by hand or secured on machine, which has wide range of using.
- This stainless steel syringe barrel is pneumatic, so it has to connect with automatic glue dispenser when working.
Material | Volume | ID | OD | Length | Mouth dia. | Connector type |
Stainless steel | 10cc | 16mm | 18mm | 99mm | 1.5mm | Male luer lock |
Stainless steel | 30cc | 22mm | 25mm | 138mm | 2mm | Male luer lock |
Stainless steel | 55cc | 22mm | 25mm | 200mm | 2mm | Male luer lock |
Stainless steel | 100cc | 29mm | 31.5mm | 200mm | 3mm | Male luer lock |

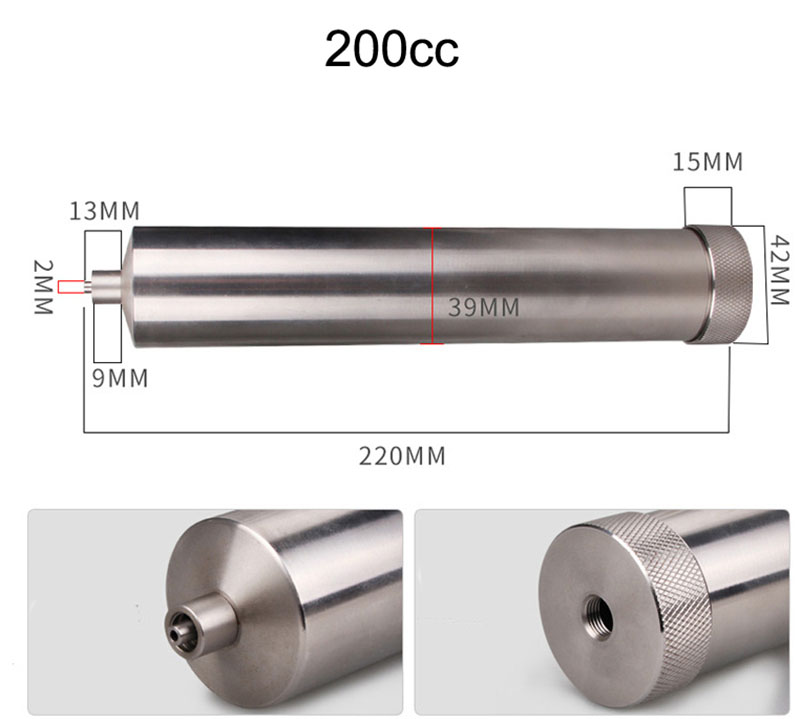

Stainless steel | 200cc | 36mm | 39mm | 220mm | 2mm | Male luer lock |
Stainless steel | 300cc | 50mm | 55mm | 220mm | 12mm | Large screw hole |
Stainless steel | 500cc | 50mm | 55mm | 290mm | 12mm | Large screw hole |
